DIY smart home motorized curtain track kit including curtain motor, curtain rail, remote control & accessories

2 sold in last 8 hours
Size Guide
Track Size :
Motor Type :
Power Plug :
customers are viewing this product

Tuya WiFi/Tuya Zigbee/RS485/Z-wave/KNX smart home motorized curtain track system including curtain motor, curtain track, RF433 remote control and all accessories.

Installation Operation Video


Manual start: Pull curtain about 10cm by hand, curtain will open or close automatically.

Manual operation if power off: When there is no power, you can open or close by hand easily.

Middle position set: Set a middle stop location at the middle of open and close position to make better lighting effect.

Multiple controls: Switch control, remote control, app control or voice control.

Track length freely spliced: DIY design, get any length needed.

Automatically set the memory running point: After power off, the motor will set running point of open and close again when power on.

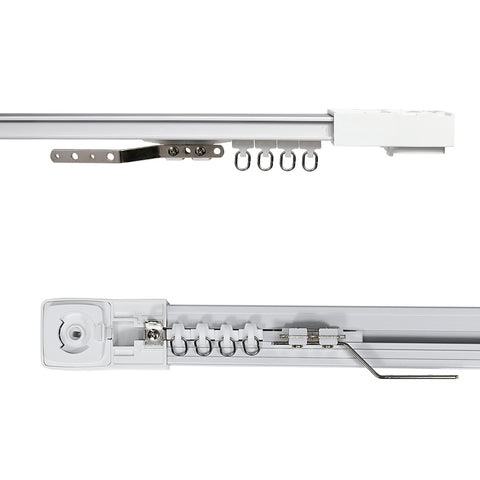

*Curtain track: Aluminum alloy material.
Length of Track can be assembled freely, such as the 2.2m track set contains 1000mm track/1pc, 500mm track/1pc, 200mm track/2pcs, 100mm track/1pc, and 200mm track connector/1pc, 100mm track connector/1pc.

2.2m track set for window width 2.16m
3.2m track set for window width 2.16m-3.16m
4.2m track set for window width 3.16m-4.16m
5.2m track set for window width 4.16m-5.16m
6.2m track set for window width 5.16m-6.16m
7.2m track set for window width 6.16m-7.16m
8.2m track set for window width 7.16m-8.16m

*Curtain motor: Tuya WiFi/Tuya Zigbee/RS485/Z-wave/KNX motor/common electric curtain motor/4-cable motor/5-cable motor optional. (Tuya WiFi / Tuya Zigbee Motor works with Alexa & Google Home Voice Control. Smartlife APP Control.)

Motor specifications:
Rated Torque: 1.2N.m
AC100-240V, 50/60Hz
Rated Power: 40W
Max Load: 50KG
Radio Distance: >50M
Protection Class: IP20

*Standard package accessories include: Gear box, carriers, runners, belt, ceiling mount brackets, straight track connector, single-channel RF433 remote control, English user manual etc.

*Application: Home/office/hotel/classroom/gymnasium etc.

*Classification: Window treatment, drapery hardware.

*Place of Origin: China.



Belt quantity: 2 meters belt for 1 meter track

Carrier quantity: 1pc for singel open; 2pcs for double open

Ceiling bracket quantity:

Track length+2 for 2.2m-5.2m; Track length+3 for 6.2m-8.2m

Runner quantity: 8pcs runners for 1 meter track

Hook quantity: 1pc for single open ; 2pcs for double open

Track connector quantity: 1pc for 2pcs tracks

Power plug: CN/EU/UK/US standard plugs optional. (Other standard power plug need to customize based on 200pcs).

Extra cost if need wall mount brackets, dual channel RF433 remote control, 16-channel RF433 remote control, wireless wall switch control, 90 ° or 135° track connectors.

Old version tuya wifi curtain motor:

Old version tuya zigbee curtain motor:

Old version z-wave curtain motor :

Old version 4 wires curtain motor:
